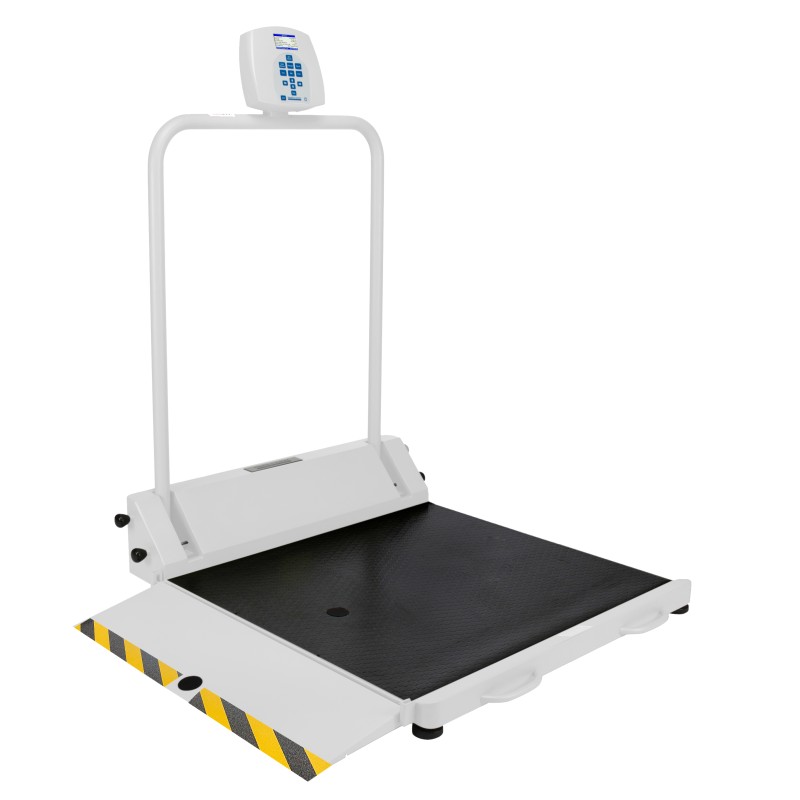

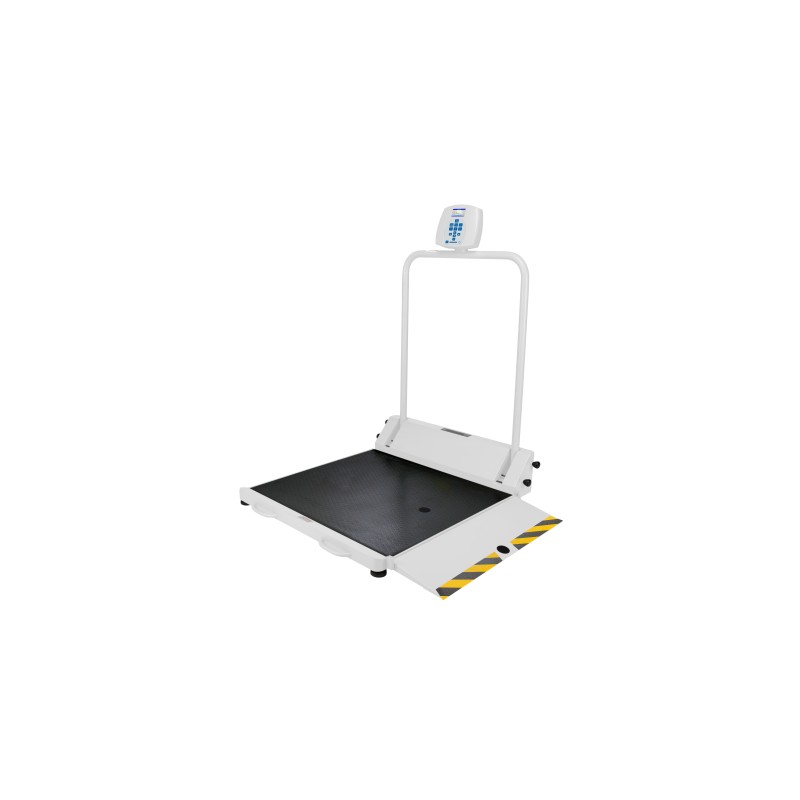

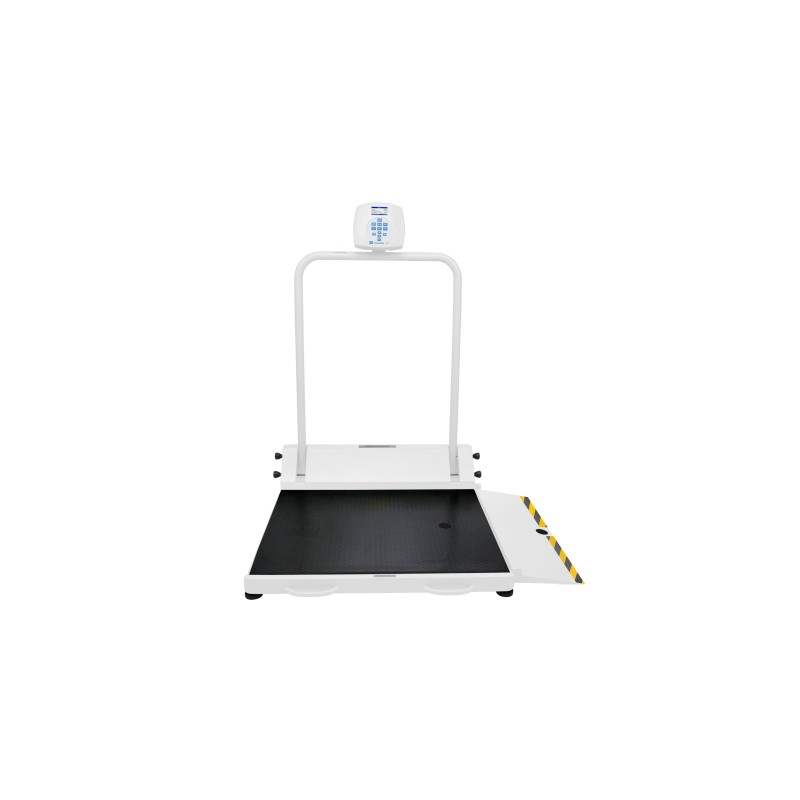

The Health o meter® 2600KL Digital Wheelchair Ramp Scale is a high‑capacity, professional‑grade medical scale engineered for hospitals, clinics, long‑term care facilities, and bariatric programs. Designed for maximum accessibility, the 2600KL features a large roll‑on platform with an integrated ramp, allowing safe and smooth entry for wheelchairs, chairs, and mobility devices.

With a 1000 lb / 454 kg capacity and 0.2 lb / 0.1 kg resolution, the 2600KL delivers the accuracy required for bariatric and wheelchair‑bound patients. The platform folds for compact storage, and uniquely, the 2600KL includes built‑in casters, making it the only wheelchair scale in its class designed for effortless mobility.

The 180° swivel display head improves visibility from multiple angles, while the antimicrobial keypad enhances infection control in high‑traffic clinical environments. The scale supports USB EMR connectivity, enabling seamless transfer of weight data into electronic medical record systems.

Powered by an AC adapter or batteries, the 2600KL is suitable for both stationary and mobile clinical workflows. Optional accessories—including secondary ramps, ADA compliance kits, and wireless upgrade kits—allow facilities to customize the scale to their operational needs.

Key Features & Benefits

• 1000 lb / 454 kg capacity with 0.2 lb / 0.1 kg resolution for bariatric and wheelchair patients

• Large roll‑on platform with integrated ramp for safe, smooth access

• Folding platform + built‑in casters for easy transport and storage (unique in its class)

• 180° swivel display head for flexible viewing in tight clinical spaces

• Antimicrobial keypad supports infection‑control protocols

• USB EMR connectivity with optional Bluetooth® upgrades

• Dual power options — AC adapter or battery operation

• Functions: LB/KG conversion, LB/KG lockout, BMI, Zero, Tare, Hold/Release, Reweigh, Auto Zero, Auto Off

Technical Specifications

• Model: 2600KL

• Capacity: 1000 lb / 454 kg

• Resolution: 0.2 lb / 0.1 kg

• Platform Size: 36" W × 32.25" D × 2.5" H

• Overall Dimensions: 43.875" × 48.125" × 49.375"

• Display: 1.5" high‑contrast TFT‑LCD

• Power: AC adapter (included) or 6 D‑cell batteries

• Connectivity: USB standard; optional Bluetooth® kits available
