Tuttnauer T-TOP11B Class B Autoclave – 27L Sterilizer

Tuttnauer T-TOP11B Class B Autoclave

The T-TOP11B combines the sterilization capabilities of a Class B pre-vacuum autoclave with the larger chamber capacity of Tuttnauer's T-TOP11 platform.

For facilities where a smaller tabletop autoclave frequently reaches capacity, the 27-liter chamber provides additional room for compatible instrument loads while retaining a tabletop configuration.

The Tuttnauer T-TOP11B is a 27-liter Class B automatic tabletop autoclave designed for practices that need advanced pre-vacuum sterilization combined with greater instrument capacity.

Its 11-inch diameter × 18-inch deep chamber provides additional space compared with the 21-liter T-TOP10B, making the T-TOP11B particularly attractive for growing practices, multi-provider facilities and healthcare organizations that routinely process larger instrument loads.

In addition to Class B pre-vacuum sterilization, the T-TOP11B provides active closed-door drying, automatic water filling, touchscreen controls, Wi-Fi connectivity and Tuttnauer's T-Connect platform for digital cycle documentation and traceability.

Not sure which Tuttnauer autoclave is right for your practice?
Compare chamber sizes, manual vs. automatic operation, Class S vs. Class B sterilization and popular models in our Tuttnauer Autoclave Comparison Guide.

Key features include:

• Class B pre-vacuum sterilization
• 27 L / 7-gallon chamber
• 11" diameter × 18" deep chamber

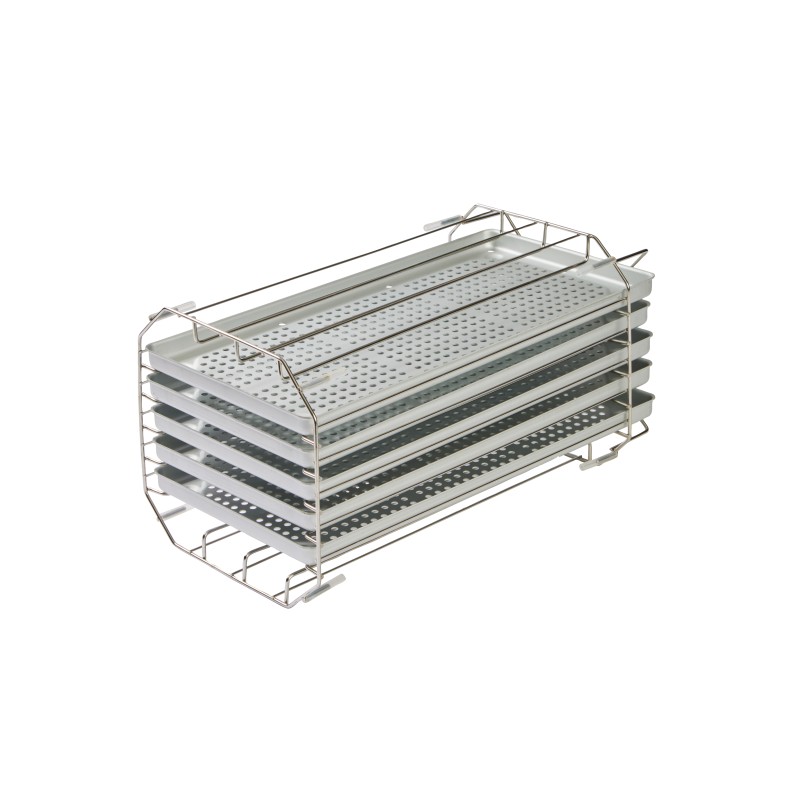

• Capacity for up to five trays
• Active closed-door drying
• Manual or automatic water filling
• Automatic drain and fill kit included
• Separate reservoirs for clean and used water
• Intuitive color touchscreen
• Wi-Fi connectivity
• Two USB ports
• Tuttnauer T-Connect software
• Programmable delayed cycle start
• Digital cycle documentation and traceability

Tuttnauer specifically identifies the automatic drain and fill system as a feature of the larger T-TOP11 platform.

Shop all Tuttnauer Autoclaves

Tuttnauer T-TOP11B Specifications

Tuttnauer's current specifications confirm the 27-liter chamber, 11" × 18" dimensions, five-tray maximum, 115-lb weight and manual/automatic water filling.

Larger 27-Liter Chamber for Greater Instrument Capacity

Capacity is one of the biggest reasons to choose the T-TOP11B over the T-TOP10B.

The T-TOP11B increases chamber diameter from 10 inches to 11 inches and total chamber volume from 21 liters to 27 liters.

That additional space can be valuable for facilities processing larger or more numerous compatible instrument loads throughout the day.

Rather than simply choosing the largest available sterilizer, practices should consider their typical instrument volume, load configuration and available countertop space when determining whether the additional capacity of the T-TOP11B is worthwhile.

Class B Pre-Vacuum Sterilization

The T-TOP11B provides Class B sterilization with vacuum-assisted air removal.

Pre-vacuum technology removes air from the chamber and compatible loads before steam sterilization, supporting steam penetration for instrument configurations requiring advanced air removal.

Tuttnauer provides Class B programs for loads including:

• Unwrapped instruments
• Wrapped pouches
• Wrapped delicate instruments
• Unwrapped delicate instruments

The T-TOP platform also provides Bowie-Dick and vacuum test cycles for verification of steam penetration, air removal and pressure-vessel integrity.

Always select sterilization programs according to the instrument manufacturer's instructions, Tuttnauer operating instructions and applicable facility protocols.

Tuttnauer T-TOP11B Cycle Times

The larger T-TOP11 chamber has different published cycle times than the smaller T-TOP10 platform.

Tuttnauer currently publishes these average Class B cycle times, including drying:

Manufacturer-published average cycle times for a standard load, including drying. Actual cycle times can vary according to load weight, load type and external conditions.

These times are specific to the T-TOP11 Class B platform, which is important because they should not be copied from the smaller T-TOP10B.

Shop all Tuttnauer Products

Automatic Water Filling on the T-TOP11B

One feature that differentiates the T-TOP11B from the T-TOP10B is its water-management system.

The T-TOP10 uses manual water filling, while the T-TOP11 supports both manual and automatic water filling. Tuttnauer states that the T-TOP11 includes its automatic drain and fill kit.

For facilities processing multiple loads, automatic filling can reduce the amount of routine operator interaction required for water management.

The T-TOP platform also maintains separate reservoirs for clean and used water so clean water is available for each cycle.

Active Closed-Door Drying

The T-TOP11B incorporates active closed-door drying as part of its automatic sterilization workflow.

This allows sterilization and drying to progress through the selected cycle without requiring the door to remain open for drying.

For practices moving from a traditional manual autoclave, the combination of automatic cycle operation, closed-door drying and automatic water filling can represent a substantial change in day-to-day instrument-processing workflow.

Digital Sterilization Records With T-Connect

The T-TOP11B includes Tuttnauer's T-Connect platform for sterilization monitoring, documentation and traceability.

Digital capabilities include:

• Wi-Fi connectivity
• Two USB ports
• Cloud-based T-Connect software
• Remote access to sterilization data
• Cycle documentation
• Personalized usernames and passwords
• Optional hard-copy printing
• Barcode-related traceability options

These features allow practices to maintain and review sterilization records digitally rather than relying exclusively on manual logs.

Tuttnauer T-TOP11B vs. T-TOP10B

Both the T-TOP11B and T-TOP10B are Class B pre-vacuum autoclaves, but the T-TOP11B provides greater capacity and additional water-management capabilities.

Choose the T-TOP10B if:

Your facility needs Class B pre-vacuum sterilization but a 21-liter chamber provides sufficient capacity and minimizing countertop width is important.

Shop the Tuttnauer T-TOP10B Class B Autoclave

Choose the T-TOP11B if:

Your facility needs Class B sterilization and can benefit from a larger 27-liter chamber, additional chamber diameter and automatic water filling.

Tuttnauer T-TOP11B vs. T-TOP11S

The T-TOP11B and T-TOP11S share the same larger 27-liter T-TOP11 platform, but they are configured for different sterilization requirements.

Choose the T-TOP11B if:

Your instrument-processing requirements call for Class B pre-vacuum sterilization and advanced air removal.

Choose the T-TOP11S if:

Your facility's instruments and loads can be appropriately processed using Tuttnauer's available Class S cycles, and Class B pre-vacuum capability isn't required.

Both provide the larger T-TOP11 chamber and the workflow advantages associated with the T-TOP11 platform.

Shop the Tuttnauer T-TOP11S Class S Autoclave

When Does the Larger T-TOP11 Make Sense?

The largest autoclave isn't automatically the best autoclave.

The T-TOP11B becomes particularly worth considering when a facility's actual instrument-processing requirements justify the additional capacity.

Examples include practices where:

• Multiple providers share sterilization equipment
• Instrument volume has increased
• The existing sterilizer frequently reaches capacity
• Larger compatible loads are routinely processed
• A 21-liter chamber has become restrictive
• Automatic water filling would improve workflow

Facilities with lower instrument volume may find the smaller T-TOP10B provides all the Class B capability they need while occupying less countertop width.

Who Should Consider the T-TOP11B?

The T-TOP11B can be considered for professional facilities requiring Class B sterilization combined with greater tabletop capacity, including:

• Multi-provider dental practices
• Oral surgery practices
• Medical offices
• Specialty clinics
• Outpatient facilities
• Veterinary practices
• Other higher-volume professional instrument-processing environments

The appropriate autoclave should always be selected according to the instruments and loads being processed and applicable sterilization protocols.
