Midmark 228 Accessible Examination Chair for Clinical Care
The Midmark Ritter 228 Barrier-Free Examination Chair is designed to support patient access while helping providers position patients for examinations. Its 17-inch low seat height, 28-inch-wide transfer surface and 500 lb patient weight capacity make it a practical option for medical offices, clinics and other care environments working toward accessible exam-room design. The Ritter 228 is designed for compliance with the 2024 US Access Board accessibility standards.
Ritter 228 features
- 17-inch low seat height and 37-inch maximum seat height, uncompressed
- 28-inch-wide seamless upholstery surface
- 500 lb (227 kg) patient weight capacity

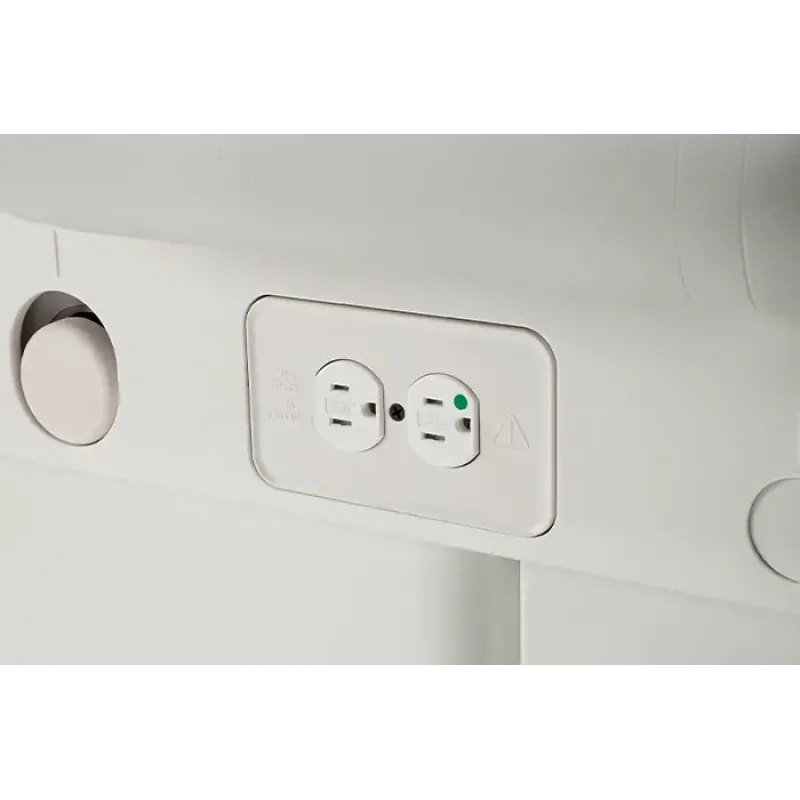

- Hospital-grade electrical receptacles on both sides
- Paper roll holder accommodates a roll up to 24 inches wide

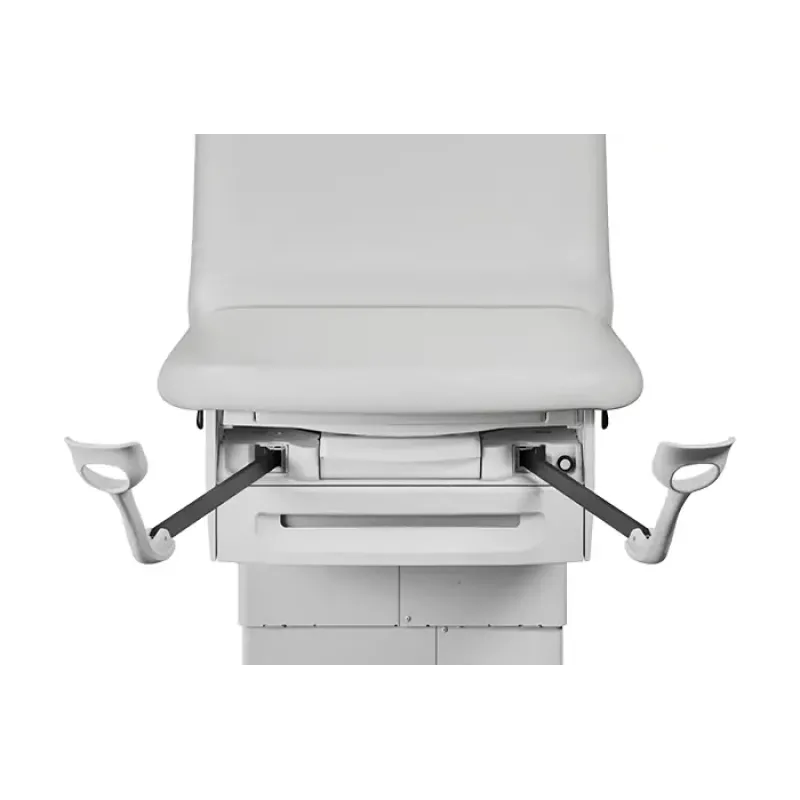

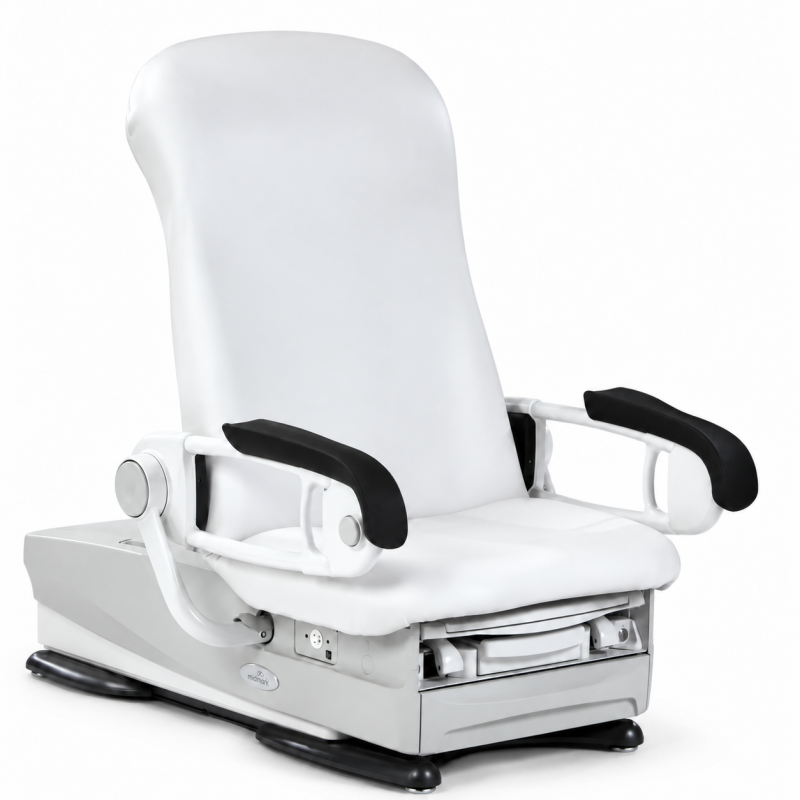

- Accessory options include Patient Support Rails, Patient Support Rails+ and Articulating Knee Crutches
- Pelvic tilt and heated drawer are available on select configurations
Technical specifications
| Patient weight capacity | 500 lb (227 kg) |
|---|---|
| Seat height | 17 inches low / 37 inches high, uncompressed |
| Seamless upholstery | 28 in. W × 60 in. L |
| Length with footrest extended | 76 inches with 16-inch footrest extension |
| Pelvic tilt | 5 1/5° on select configurations |
| Heated drawer | 24.6 W; 92°F–112°F at 115 VAC input and 70°F ambient, on select configurations |
| Paper roll holder | Up to 24 in. wide × 3.56 in. diameter |
| Electrical receptacles | Hospital-grade receptacles on left and right sides |
| Electrical ratings | 228-001: 115 VAC, 60 Hz, 9 A; 228-002 and 228-003: 115 VAC, 60 Hz, 11.5 A |
| Chair weight with upholstery | 435 lb (197 kg) |
| Shipping weight | 470 lb (213 kg) |
Configurations and upholstery
Choose the available Ritter 228 model configuration: 228-001, 228-002 or 228-003. Features vary by configuration; confirm the selected model’s included features before ordering. Upholstery colors and options vary. Contact Mohawk Medical Mall for help confirming the model and upholstery selection.
Patient support rails, articulating knee crutches and other accessories are available separately unless included in the selected configuration.
Shipping & Delivery
This chair ships by truck freight. Additional freight charges apply. Contact Mohawk Medical Mall for a shipping quote before ordering, especially if your facility requires a liftgate, delivery appointment or other special delivery service.
Why buy from Mohawk Medical Mall?
Mohawk Medical Mall has served healthcare providers since 1946 and ships medical equipment nationwide. Contact our team for help with configuration, upholstery and freight questions.
| FAQs | |
| FAQ Question 1 | What accessibility features does the Midmark Ritter 228 Barrier-Free Examination Chair offer? |
| FAQ Answer 1 | The Ritter 228 has a 17-inch low seat height and a 28-inch-wide transfer surface. Midmark states the chair is designed for compliance with the 2024 US Access Board accessibility standards. |
| FAQ Question 2 | What is the weight capacity of the Midmark Ritter 228? |
| FAQ Answer 2 | The Midmark Ritter 228 supports patients weighing up to 500 lb (227 kg). |
| FAQ Question 3 | What is the seat height range of the Ritter 228 exam chair? |
| FAQ Answer 3 | Its uncompressed seat height ranges from 17 inches low to 37 inches high. |
| FAQ Question 4 | Do all Ritter 228 configurations include pelvic tilt and a heated drawer? |
| FAQ Answer 4 | No. Pelvic tilt and a heated drawer are available on select configurations. Check feature availability for the selected model before ordering. |
| FAQ Question 5 | What accessories are available for the Midmark Ritter 228? |
| FAQ Answer 5 | Available accessories include Patient Support Rails, Patient Support Rails+ and Articulating Knee Crutches. Confirm compatibility and whether an accessory is included with your selected configuration. |
