Welch Allyn 118-3 PanOptic Plus Ophthalmoscope
- Brand: HillRom Welch Allyn
- Product Code: 118-3
-
$905.60

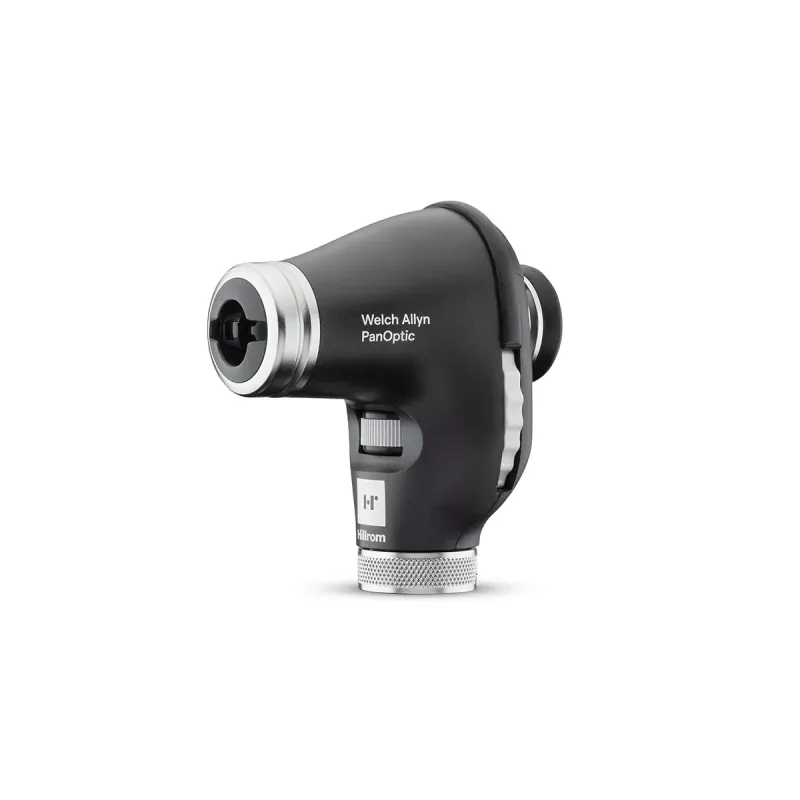

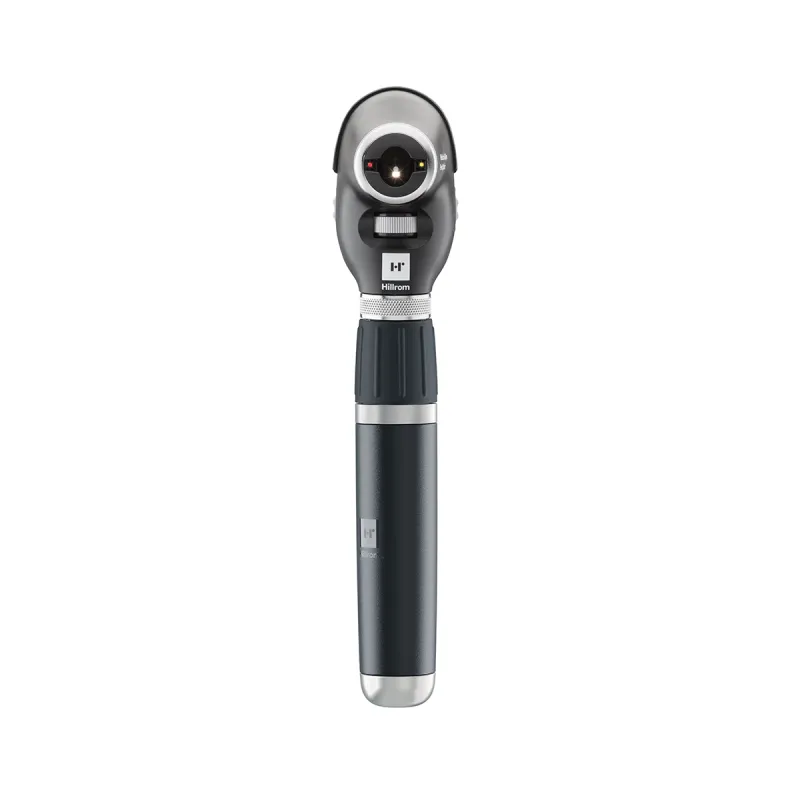

Welch Allyn PanOptic Plus Ophthalmoscope – Model 118-3
The Welch Allyn PanOptic Plus Ophthalmoscope is designed to help clinicians get a brighter, wider view during eye examinations. Quick Eye alignment technology uses two indicator lights to help guide the patient’s gaze for improved optic disc alignment.
**Iphone Not Included
Welch Allyn PanOptic Plus Ophthalmoscope, Model 118-3: Receive a $50 rebate and Welch Allyn Lithium Ion Plus Power Handle, Model 719-3: Receive a $25 rebate when purchased between January 1 and December 31, 2026. Available to U.S. healthcare customers, excluding medical students. To claim, submit a completed W-9, proof of purchase, and a photo of the device being traded up with its serial number visible through Baxter’s online redemption form by February 15, 2027. Please allow 12 weeks for the rebate.

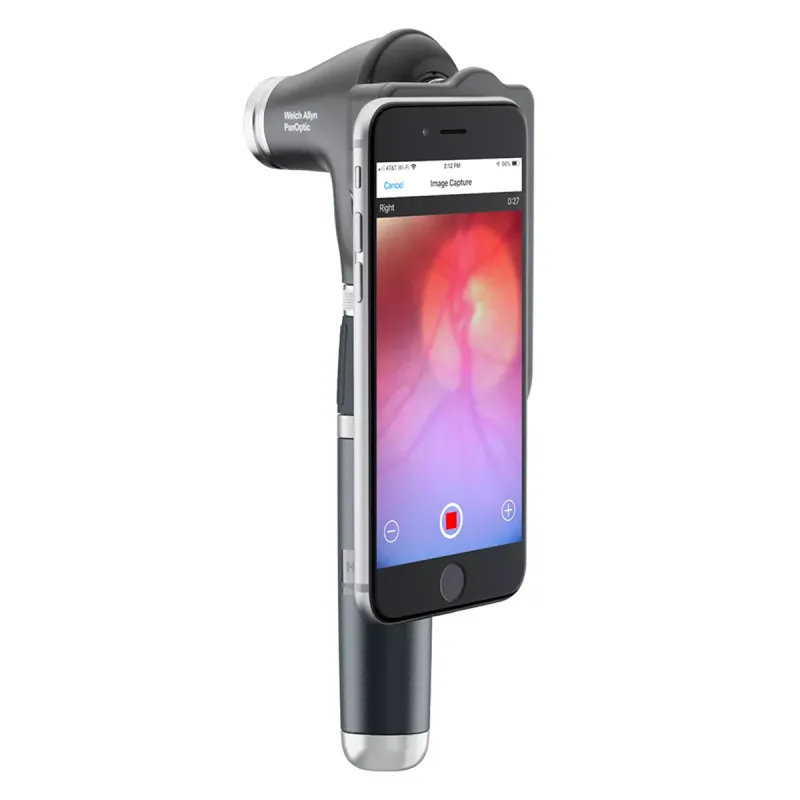

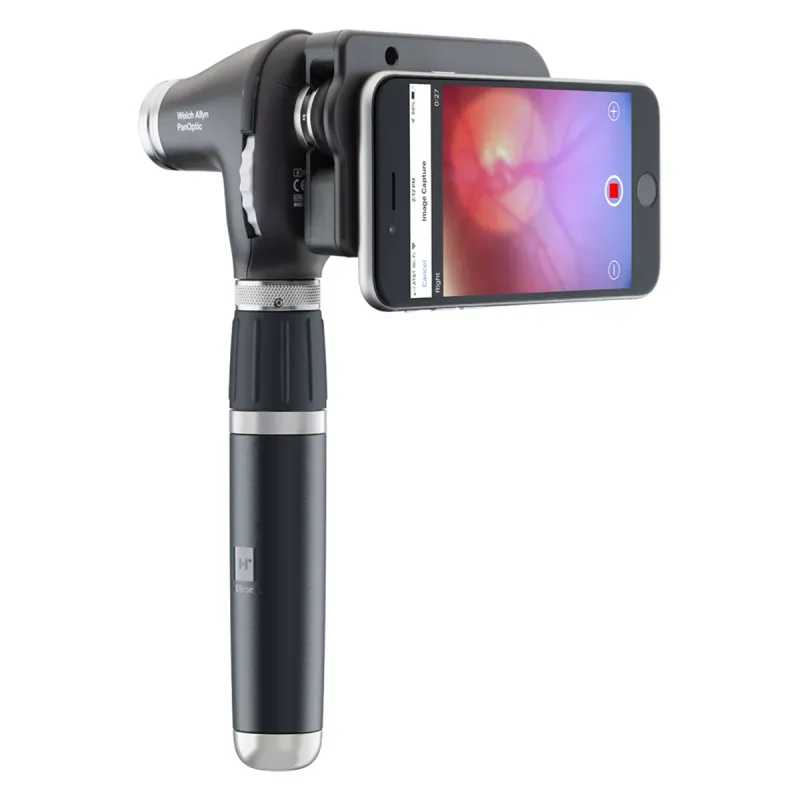

The digitally capable PanOptic Plus can capture and share eye images when used with the Welch Allyn iExaminer SmartBracket and iExaminer Pro App, available separately. It works with existing Welch Allyn 3.5 V power sources, making it a practical option for compatible exam setups.
Key Features
-
Wider viewing area—up to 20 times larger than a standard ophthalmoscope, according to Welch Allyn
-
Quick Eye alignment technology with two patient-gaze indicator lights
-
Digital image capture and sharing capability with the iExaminer SmartBracket and iExaminer Pro App
-
Multiple apertures and a diopter range from -20 to +25 D
-
Compatible with existing Welch Allyn 3.5 V power sources
-
5-year instrument warranty and 7-year SureColor LED lamp warranty
Specifications
| Specification | Detail |
|---|---|
| Model | 118-3 |
| Instrument type | PanOptic Plus Ophthalmoscope |
| Digital image capability | Yes |
| Quick Eye alignment technology | Yes |
| Dimensions (H × W × D) | 8 × 4.5 × 7.5 cm |
| Weight | 130 g |
| Apertures | Small, large, red-free, slit, fixation target, cobalt blue |
| Diopter range | -20 to +25 D |
| Diopter steps | -20, -15, -12, -10, -9, -8, -7, -6, -5, -4, -3, -2, -1, 0, +1, +2, +3, +4, +5, +6, +7, +8, +9, +10, +12, +15, +20, +25 |
| Crossed-linear polarizers | Yes |
| Lamp | SureColor LED |
| Lamp color rendering | CRI 95 typical; R9 85 typical |
| Lamp color temperature | 2,700–3,500 K |
| Field of view | 20° |
| Instrument warranty | 5 years |
| LED lamp warranty | 7 years |
Optional Accessories
-

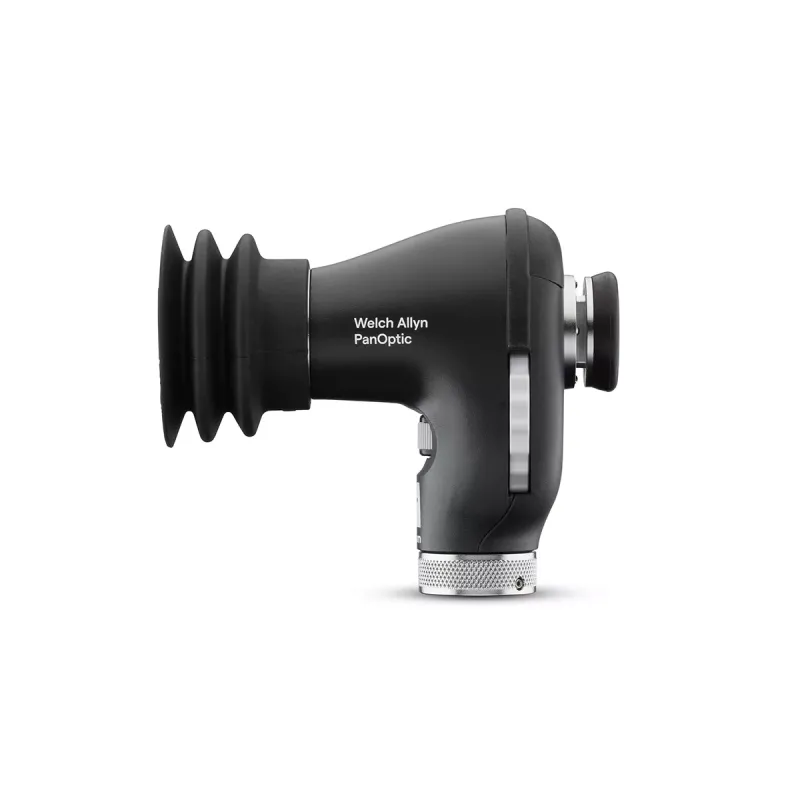

118-EC Reusable Eyecup, set of 5
-
11840-IEX iExaminer SmartBracket
-
11840-TST iExaminer Resolution Test Card
-
777-LH 3.5 V Head Locking Hardware, set of 5
| FAQs | |
| FAQ Question 1 | What is the difference between the PanOptic Plus 118-3 and PanOptic Basic 118-2? |
| FAQ Answer 1 | The 118-3 is digitally capable and includes Quick Eye alignment technology. The 118-2 does not have those features. The spec sheet lists a 5-year warranty for the 118-3 and a 1-year warranty for the 118-2. |
| FAQ Question 2 | Can the PanOptic Plus 118-3 capture eye images? |
| FAQ Answer 2 | Yes. Image capture and sharing are available when the ophthalmoscope is used with the iExaminer SmartBracket and iExaminer Pro App. These accessories are available separately. |
| FAQ Question 3 | What power source does the 118-3 use? |
| FAQ Answer 3 | It works with existing Welch Allyn 3.5 V power sources. |
| FAQ Question 4 | What apertures are available on the PanOptic Plus? |
| FAQ Answer 4 | The spec sheet lists small, large, red-free, slit, fixation-target, and cobalt-blue apertures. |
| FAQ Question 5 | What is the warranty on the 118-3? |
| FAQ Answer 5 | The spec sheet lists a 5-year warranty for the ophthalmoscope and a 7-year warranty for the SureColor LED lamp. |
